Szczegóły Produktu:
|
| Produkt: | 3,5 cala TFT LCD | rezolucja: | 320 × 480 pikseli (RGB) |
|---|---|---|---|
| Interfejs: | 16-bitowy równoległy (DBI typ B) | Wym. konturu: | 54.48*84.71*3. 25 mm |
| Kierunek oglądania: | godzina 12 | Ekran dotykowy: | z rezystancyjnym panelem dotykowym |
| Układ scalony sterownika: | ILI9488 | Współczynnik kontrastu: | 250:1 |
| Trwałość dotykowa: | Ponad 1 000 000 cykli wejściowych | Luminancja powierzchni: | 300 cd/m² (typowo) |
| Temperatura operacyjna.: | -20℃ do +70℃ | Zgodność: | Zgodny z REACH i RoHS |
| Podkreślić: | 3.5-inch TFT LCD,TFT LCD with Resistive Touch Panel,320×480 TFT LCD Display |
||
Reliable, Cost-Effective Touch Display Solution for Demanding Embedded Applications

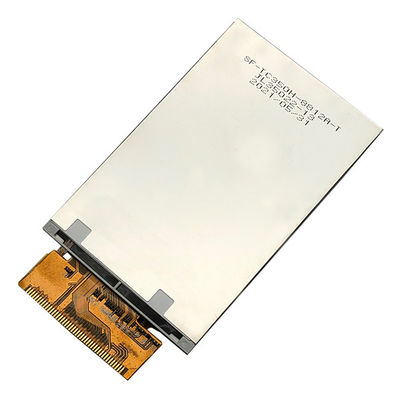

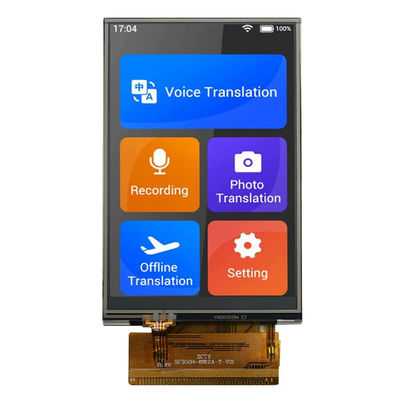

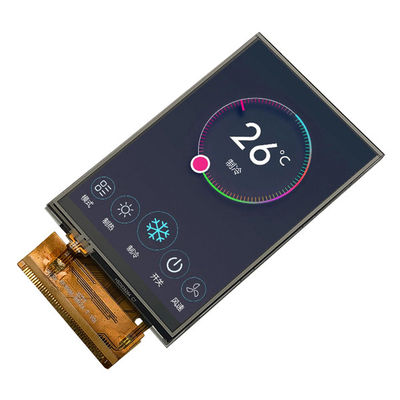

Saef Technology Limited presents the SF-TC350H-8812A-T, a robust 3.5-inch TFT LCD module engineered for applications where durability, simplicity, and reliability are paramount. Featuring a 320×480 resolution, integrated resistive touch panel, and a widely supported 16-bit parallel interface driven by the ILI9488 IC, this module is ideal for industrial HMIs, medical devices, point-of-sale systems, and embedded control panels.
Engineered for Stability & Ease of Integration:
Proven Resistive Touch Technology: With over 1,000,000 input cycles and linearity within ±1.5%, this RTP delivers reliable performance in environments where capacitive touch may be less suitable, such as gloved operation or dusty conditions.
Wide Operating Temperature Range: Certified for -20°C to +70°C operation and -30°C to +80°C storage, ensuring consistent performance in challenging environments.
Simple Interface & Low System Overhead: The 16-bit parallel interface reduces development complexity and is compatible with a wide range of microcontrollers and embedded processors, speeding up time-to-market.
Optical Performance Tailored for Readability: 300 cd/m² brightness and 250:1 contrast ratio provide clear visibility in typical indoor and industrial lighting conditions. The 12 o’clock viewing direction optimizes display orientation for vertical-mounted applications.
Technical Specifications for Design Consideration:
Power Supply: VDD = 2.8V ±0.2V, IOVCC = 1.8V–2.8V
Backlight: White LED edge-lit, 19.2V typical forward voltage (20mA drive)
Touch Panel Ratings: X-axis resistance 300–900Ω, Y-axis 200–500Ω; operating voltage ≤7V DC
Mechanical Outline: 54.48mm × 84.71mm × 3.25mm (max)
Compliance: Designed to meet industrial reliability standards with testing for high/low temperature, humidity, thermal shock, and vibration resistance
Why Choose Saef for Your Display Solution?
While this module comes standard with a resistive touch panel, we understand that project requirements evolve. Saef offers free semi-customization options, including:
Touch Panel Upgrades: Migrate from resistive to capacitive touch (PCT) with I²C/SPI interface.
Interface Adaptation: Modify to RGB, SPI, or MIPI DSI interfaces based on your system architecture.
Optical & Mechanical Tweaks: Adjust brightness, bonding methods, FPC length, or outline dimensions.
Custom Branding: Add logos, custom masks, or decorative borders.
Ideal For:
Industrial control panels and HMIs
Medical monitoring and diagnostic equipment
Portable test and measurement devices
Retail POS terminals and kiosks
Automotive aftermarket displays
Home automation and security panels
Designed for Engineers, by Engineers.
At Saef, we partner with you through the design cycle—providing samples, technical documentation, and customization support to ensure your display integrates seamlessly and performs reliably.
Call to Action for High-Value Inquiries:
Need a display that matches your reliability requirements? Contact our engineering team for datasheets, evaluation samples, or a custom design consultation.
Mechanical Dimensions
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | GND | I | Power Ground |
| 2 | LED-K6 | I | LED Cathode |
| 3 | LED-K5 | I | LED Cathode |
| 4 | LED-K4 | I | LED Cathode |
| 5 | LED-K3 | I | LED Cathode |
| 6 | LED-K2 | I | LED Cathode |
| 7 | LED-K1 | I | LED Cathode |
| 8 | LED-A | I | LED Anode |
| 9 | GND | I | Power Ground |
| 10 | GND | I | Power Ground |
| 11 | VCC | I | 2.8V Power Source |
| 12 | /RESET | I | Reset Signal Pin |
| 13 | GND | I | Power Ground |
| 14 | GND | I | Power Ground |
| 15--30 | DB15-DB0 | I/O | Data Signal |
| 31 | /RD | I | Read strobe signal input pin |
| 32 | /WR | I | Write strobe signal input pin |
| 33 | RS | I | Register select signal |
| 34 | CS | I | Input pin for chip selection signal |
| 35 | GND | I | Power Ground |
| 36 | IOVCC | I | 1.8V~2.8V Power Source |
| 37 | GND | I | Power Ground |
| 38 | GND | I | Power Ground |
| 39 | YD | I |
Touch Panel Pin |
| 40 | XR | I | |
| 41 | YU | I | |
| 42 | XL | I | |
| 43 | GND | I | Power Ground |
| 44 | GND | I | Power Ground |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
DC Characteristics
| Item | Symbol | Min | Type | Max | Unit | Test condition |
|
Operating voltage |
VDD | 2.6 | 2.8 | 3.0 | V | - |
| Supply current | IDD | - | TBD | - | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.7VDD | - | VDD | V |
- |
| VIL | 0 | - | 0.3VDD | V | ||
|
Input leakage current |
IIL | - | TBD | - | μA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT |
Test Condition |
| Supply Voltage | Vf | 19.2 | V | If=20 mA | ||
| Supply Current | If | - | 20 | - | mA | - |
| Reverse Voltage | Vr | - | - | 5 | V | - |
| Power dissipation | Pd | - | 384 | - | mW | - |
| Luminous Intensity for LCM |
- |
- | 300 | - | Cd/m2 | If=20mA |
| Uniformity for LCM | - | 80 | - | - | % | If=20 mA |
| Backlight Color | White | |||||
Touch Screen Panel Specifications
| It em | Symbol | Min. | Type. | Max. | unit | Remark |
| TransParency | - | - | 82 | - | % | JIS K-7105 |
| Haze | - | - | 1 | - | % | JIS K-7105 |
| Hardness Of Surface | - | - | 3 | - | H | 150gf 45° |
| FPC Peeling Strength | - | 5 | - | N | Upward 90° | |
| FPC Bending | - | - | 3 | - | cycle | R=1.0, 90° |
| Input Force | - | - | 50 | gf | - | |
| Rated Voltage | V touch | 7 | V | DC | ||
| X-axis Resistance | Rx | 300 | 900 |
FPC PIN |
||
| X-axis Resistance | Ry | 200 | 500 | |||
| Linearity | - | - | ±1.5 | ±2.0 | % | - |
| Chattering | - | - | - | 20 | ms | - |
| Insulation Resistance | Ri | 10 | - | - | MΩ | - |
| Notes Life | - | 100,000 | - | - | Times | - |
| Input Life | - | 1,000,000 | - | - | Times | - |
Optical Specifications
| No. | ITEM | Symbol | Conditions | Specification | Unit | |||
| Min | Typ | Max | ||||||
| 1 | Response Time | Tr+Tf | 25℃ |
- |
15 |
- |
Ms | |
| 2 | Transmittance (With PL) | T(%) | - | - | 7.1 | - | - | |
|
3 |
Contrast Rate |
Cr |
θ=0, Normal viewing angle |
- |
250 |
- |
- |
|
|
4 |
Viewing Angle |
Hor. | θR |
CR>10 |
- | 45 | - |
Deg |
| θL | - | 45 | - | |||||
| Ver. | Θ+ | - | 45 | - | ||||
| Θ- | - | 30 | - | |||||
